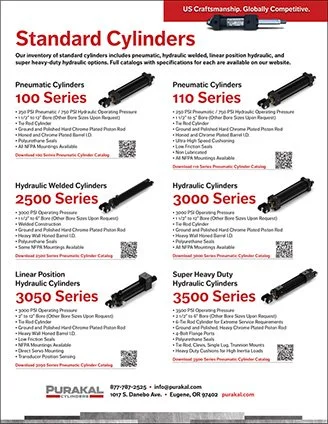

Standard Cylinders

Dive into our inventory of standard cylinders, or find out more about our mainstay: custom cylinders. Purakal Cylinders is ISO 9001:2015 certified and our products come with full warranties. We are able to meet ABS, USCG and many other third-party certifications.

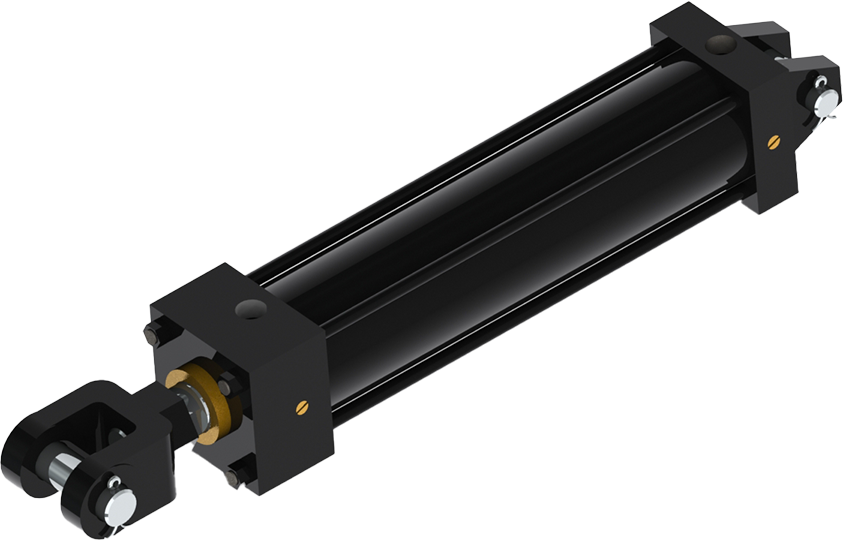

Pneumatic Cylinders

100 Series

  • 250 PSI Pneumatic / 750 PSI Hydraulic Operating Pressure

  • 1 1/2" to 12" Bore (Other Bore Sizes Upon Request)

  • Tie Rod Cylinder

  • Ground and Polished Hard Chrome Plated Piston Rod

  • Honed and Chrome Plated Barrel I.D.

  • Polyurethane Seals

  • All NFPA Mountings Available

Pneumatic Cylinders

110 Series

  • 250 PSI Pneumatic / 750 PSI Hydraulic Operating Pressure

  • 1 1/2" to 5" Bore (Other Bore Sizes Upon Request)

  • Tie Rod Cylinder

  • Ground and Polished Hard Chrome Plated Piston Rod

  • Honed and Chrome Plated Barrel I.D.

  • Ultra-High Speed Cushioning

  • Low Friction Seals

  • Non Lubricated

  • All NFPA Mountings Available

Hydraulic Welded Cylinders

2500 Series

  • 3000 PSI Operating Pressure

  • 1 1/2" to 6" Bore (Other Bore Sizes Upon Request)

  • Welded Construction

  • Ground and Polished Hard Chrome Plated Piston Rod

  • Heavy Wall Honed Barrel I.D.

  • Polyurethane Seals

  • Some NFPA Mountings Available

Hydraulic Cylinders

3000 Series

  • 3000 PSI Operating Pressure

  • 1 1/2" to 12" Bore (Other Bore Sizes Upon Request)

  • Tie Rod Cylinder

  • Ground and Polished Hard Chrome Plated Piston Rod

  • Heavy Wall Honed Barrel I.D.

  • Polyurethane Seals

  • All NFPA Mountings Available

Linear Position Hydraulic Cylinders

3050 Series

  • 3000 PSI Operating Pressure

  • 2" to 12" Bore (Other Bore Sizes Upon Request)

  • Tie Rod Cylinder

  • Ground and Polished Hard Chrome Plated Piston Rod

  • Heavy Wall Honed Barrel I.D.

  • Low Friction Seals

  • NFPA Mountings Available

  • Direct Servo Mounting

  • Transducer Position Sensing

Super Heavy Duty Hydraulic Cylinders

3500 Series

  • 3500 PSI Operating Pressure

  • 2 1/2" to 6" Bore (Other Bore Sizes Upon Request)

  • 6-Tie Rod Cylinder for Extreme Service Requirements

  • Ground and Polished, Heavy Chrome Plated Piston Rod

  • 4-Bolt Flange Ports

  • Polyurethane Seals

  • Tie Rod, Clevis, Single Lug, Trunnion Mounts

  • Heavy Duty Cushions for High Inertia Loads

Cylinders for Every Application

We also offer a wide range of standard cylinders, including pneumatic, hydraulic welded, linear position hydraulic, and super heavy-duty hydraulic options.
